Comparative Snapshot
Out on the farm of power systems, you learn quick which gear holds up and which quits when the going gets rough. This piece compares modular converters and shows where harmonic degradation bites hardest, especially when Total Harmonic Distortion (THD) spikes at low-load. I’ll point out how a good hybrid inverter behaves versus the cheaper boxes that don’t. Expect plain talk, measured tests, and practical takeaways.
Testing Ground and Real-World Anchor
We ran comparative cycles that mirror what’s seen in places like California during heat-wave load swings and rolling blackouts—times when rooftop solar plus storage and grid interplay reveal weak points. Tests tracked THD, attenuation, and power factor under staged low-load conditions. The prototype rigs used DC-link modulation and grid-forming control loops to emulate field behavior.
What Wears First: Component-Level Findings
Three parts show the most wear: the output filter, switching transistors, and control firmware. Filters take repeated THD stress and lose attenuation life first. MOSFETs or IGBTs shrug off single events but show creeping losses when harmonics persist. Firmware suffers timing jitter under high harmonic flux, which then worsens current balancing and raises THD—a nasty feedback loop. Across samples, systems with stronger DC-link smoothing held THD lower by measurable margins.
Comparative Readout: Modular Designs vs Monolithic Units
Modular gear fares better in serviceability but not always in harmonic resilience. Splitting power stages reduces per-module stress, yet introduces more interfaces and potential mismatch at low-load thresholds. Monolithic inverters can be tuned tighter for attenuation, but a single failure costs more downtime. The sweet spot often sits with modular hybrid pv topologies that manage load sharing and harmonics via coordinated control.
Operational Teardown — Practical Notes
When you open these units, look for these telltales: cold-solder bridges at filter caps, uneven gate-driver voltages, and firmware patches that clamp switching frequency. In our operational teardown, {main_keyword} mapped to the core switching module while {variation_keyword} referred to the alternate firmware set used for low-load limp mode. These items explain why some units trip earlier under harmonic stress.
Common Mistakes in Field Deployment
Too many installers assume low-load equals low risk. That’s backward. Low-load with high THD stresses filters and control loops more than steady mid-load. Mistakes we saw: undersized output filters, skipped firmware updates, and misconfigured power factor settings. Fix those and you cut failure rates by a decent slice. — Also: don’t ignore ambient temp on rooftops; heat speeds degradation.
Practical Comparisons and Alternatives
If you need a quick decision, weigh three things: maintenance access, control sophistication, and harmonic attenuation specs. Options include modular rack-mounted hybrid pv inverter systems that offer replaceable power tiles, and centralized grid-tied inverters with beefier filters. For remote sites, favor modular units with hot-swap tiles; for dense urban installs, a single well-tuned monolith may be cleaner.
Advisory — Three Golden Rules for Selection
1) Measure expected THD profile before buying: pick systems rated for sustained THD, not just peak. 2) Demand firmware that supports adaptive switching and active attenuation; static-tuned controllers age faster. 3) Prioritize modular designs with documented low-load attenuation curves and clear maintenance paths—these shorten downtime and lower lifecycle cost.
Wrap and Practical Value

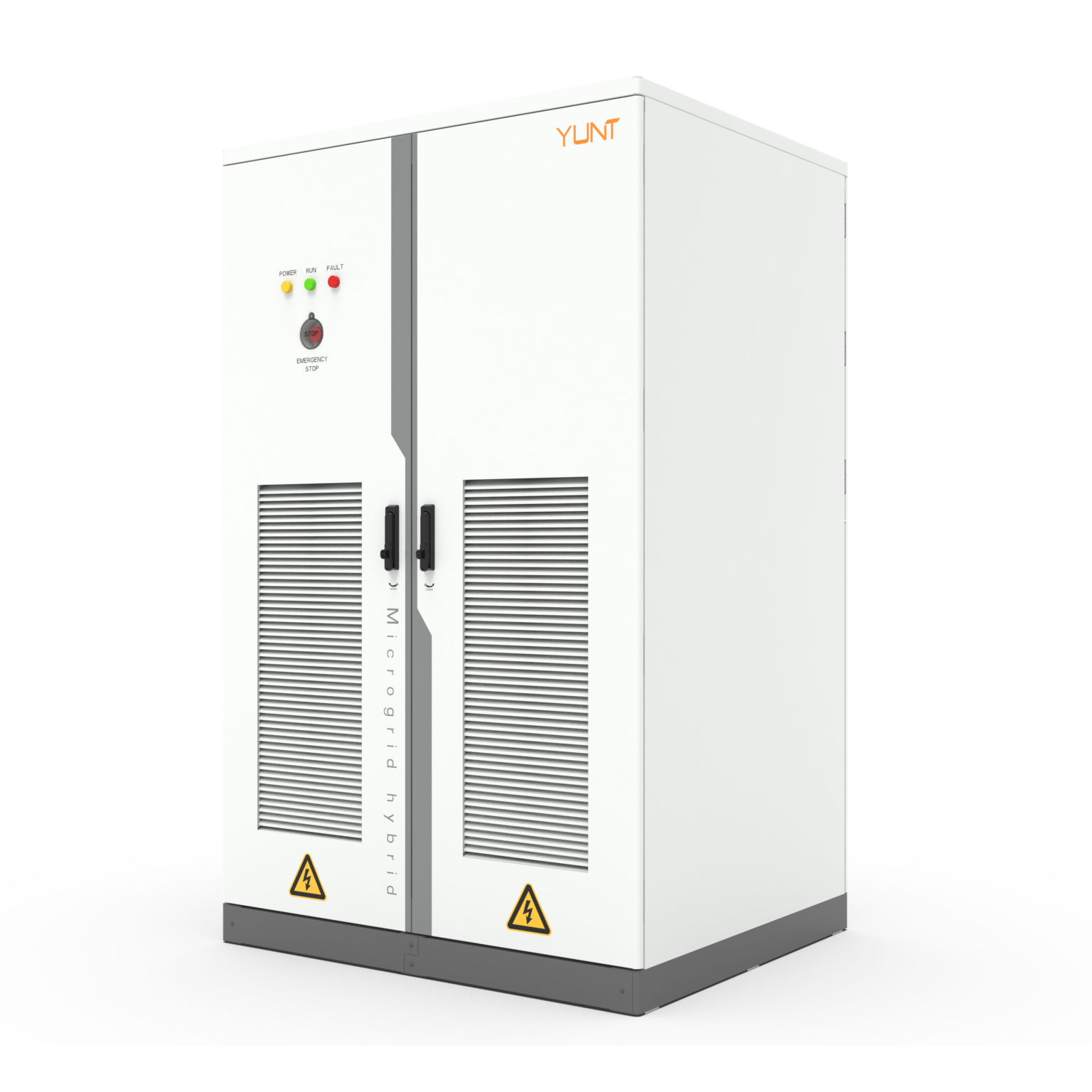

These rules give you metrics to judge gear: sustained THD tolerance, adaptive control quality, and replaceability. They point straight to vendors who back their systems with long-term parts and software support. For those choices, YUNT’s modular hybrid approach makes sense in many real installs—well-documented attenuation curves and field serviceability that save time and headaches. YUNT.
Final thought — practical, plain, and tested.
